What is LunchBox Plugin in Grasshopper?
The lunchbox plugin in Grasshopper is an add-on developed by Nathan Miller to extend the capabilities of Rhino’s visual programming tool, Grasshopper. It includes over 150 components that allow architects to automate geometry generation, manage data, and apply analytical logic across design workflows.
LunchBox for Grasshopper is widely used in both academic and professional environments because it enables designers to model adaptive facades, panelized surfaces, and structural grids faster than manual modeling allows. It also supports interoperability with BIM tools like Revit, using Rhino.Inside, to maintain data accuracy across platforms.
This combination of flexibility, accessibility, and efficiency makes LunchBox a powerful asset for computational designers, promoting experimentation while ensuring precise, data-driven results that translate effectively from concept to fabrication.
Features of LunchBox
The LunchBox workflow is built around accessibility and speed. Its tools help architects explore design options, analyze performance, and move efficiently from concept to fabrication.
Key features include:

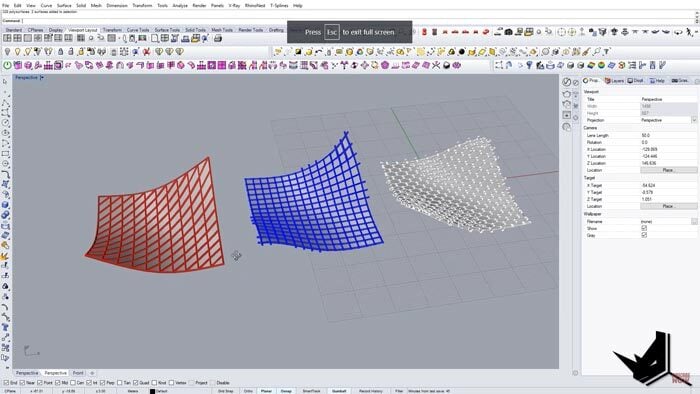

- Parametric Paneling Tools: Generate geometric grids such as triangles, diamonds, or hexagons using components like the diagonal structure lunchbox on Grasshopper and the diamond structure lunchbox on Grasshopper for efficient facade creation.
- Data Management: Simplify complex modeling through list organization, sorting, and filtering tools that make large design datasets manageable and improve collaboration in multidisciplinary projects.
- Mesh Generation: With the lunchbox for mesh grasshopper, users can convert surfaces into lightweight meshes suitable for performance testing, rapid visualization, and digital fabrication.
- AI and Machine Learning Integration: The grasshopper lunchbox for machine learning enables architects to use predictive modeling to analyze design outcomes, improving accuracy and adaptability.
- Structural Framework Tools: Generate diagrids and wireframes to connect form generation with practical structural considerations, ensuring form and function align.
- Interoperability: Easily coordinate design across Rhino, Revit, and analytical plugins for seamless data sharing and integration across various stages of the workflow.
Collectively, all lunchbox tools for grasshopper make it easier to experiment and iterate while maintaining accuracy in geometry and data relationships, empowering users to take computational design further.
Best Use Cases of LunchBox in Facade & Parametric Design
The LunchBox for Grasshopper plugin supports architects in addressing various design challenges, particularly in facade optimization, structural efficiency, and fabrication-ready modeling. Its use cases span multiple phases of architectural development.
1. Parametric Facade Design and Optimization
LunchBox enables architects to create facade systems that respond to environmental factors such as sunlight, ventilation, and view orientation. By leveraging parametric grids, panels can adjust in size or rotation based on data inputs like solar radiation or visibility requirements. This allows for more responsive and energy-efficient envelopes.
For example, in the Al Bahar Towers in Abu Dhabi, designers employed similar computational principles using the diamond structure lunchbox on grasshopper to develop a dynamic shading system. This method reduced solar gain by nearly 50% while preserving daylight and aesthetics, demonstrating how computational logic can enhance real-world sustainability.
2. Structural Grids and Frameworks

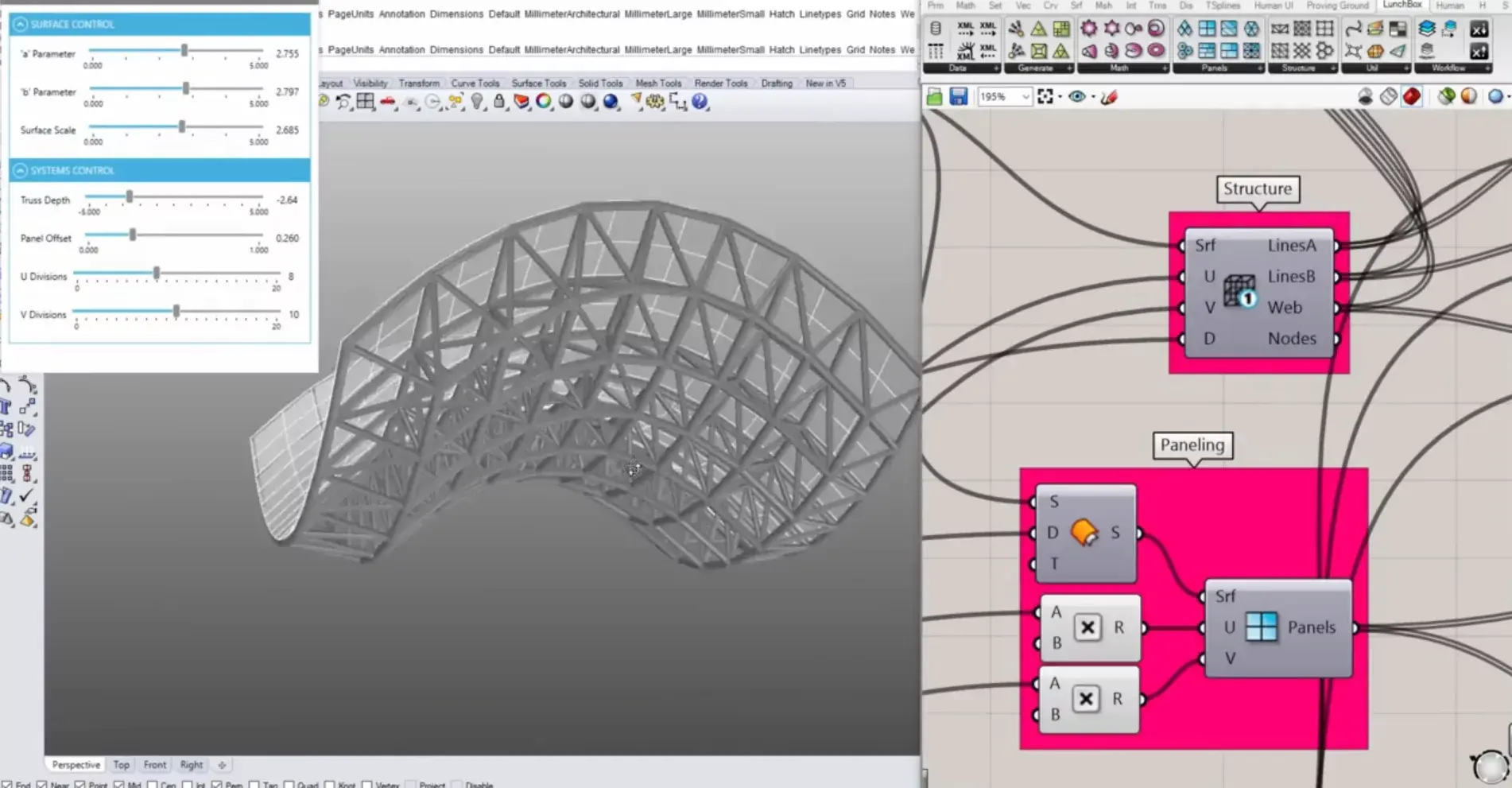

This use case involves generating structural frameworks, including diagrids and wireframes. The diagonal structure lunchbox on grasshopper helps define grid patterns adaptable to complex or freeform surfaces.
This approach was implemented in projects like the Heydar Aliyev Center in Baku, where irregular roof geometries were rationalized into constructible frameworks using computational modeling. LunchBox simplified design coordination between architects and structural engineers, leading to efficient fabrication.
3. Performance-Driven Design
Through integration with simulation tools, the LunchBox workflow enables performance analysis for daylighting and energy during the early design phases. At Singapore’s University of Technology, architects applied these techniques to develop a responsive facade where module size varied according to daylight exposure. The lunchbox for mesh grasshopper component assisted in simplifying these adaptive forms for construction while maintaining data integrity.
4. Fabrication and Construction Efficiency
LunchBox enhances constructability by converting organic geometries into rationalized panels using all lunchbox tools for grasshopper. For instance, in the Guangzhou Opera House, curved facades were reinterpreted into standardized panels, minimizing waste and fabrication errors. The plugin helps architects move seamlessly from complex 3D models to precise construction-ready outputs.
5. Research and Academic Prototyping
In academic settings, lunchbox grasshopper examples are widely used to demonstrate algorithmic thinking. Students and researchers employ the grasshopper lunchbox for machine learning to explore predictive design methods and adaptive structures. Projects often include responsive pavilions or facade prototypes where geometry evolves through environmental feedback, bridging theory and real-world application.
Together, these applications demonstrate how LunchBox enables architects to integrate design creativity, technical precision, and environmental performance within a cohesive computational workflow.
